CÁP TÍN HIỆU GORE CABLE (GORE HIGH FLEX FLAT CABLE)

26/07/2016
3 phút đọc

Hinh ảnh sản phẩm

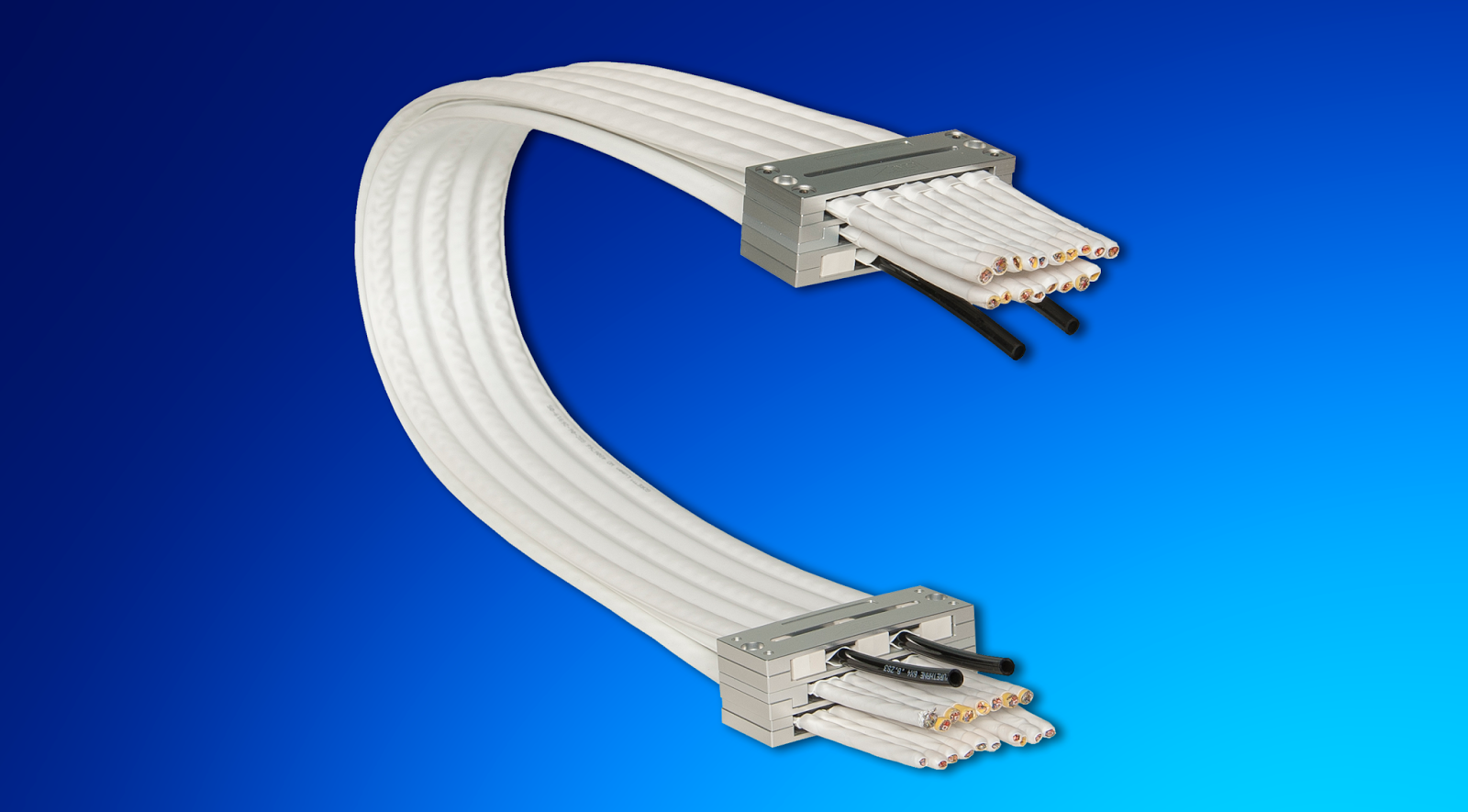

GORE HIGH FLEX FLAT CABLE

Mã sản phẩm:
Tiêu chuẩn:
Xuất xứ: GORE-USA
Tình trạng: Mới 100%
Bảo hành: 12 tháng
0 VND Mua Hàng
  • Thông số kỹ thuật
  • Bài Viết
  • Hình Ảnh
  • Video
Features and Benefits:

  • UL Style 21090
  • Flame retardant
  • Low friction surface
  • Used in Class 1 cleanroom applications
  • Low Particulation
  • Color: white
Results Aging Test
Longitudinal Original Tensile Strength (Mpa)
  24,6
After Thermal Conditioning
  22,1
After Chemical Conditioning Tensile Strength
(% Weight Change)
O-236 22,1 (+7.5)
G-354 24,3 (+13.1)
O-156 24,7 (+4.9)
H-515 17,7 (+8.6)
OZ-OIL S220 30,9 (+4.7)
Harmonic Grease 31,5 (+7.10)
Test Conditions
Thermal Conditioning
Temperature of Air Oven 121°C
Aging Duration 120 hours
Chemical Conditioning
Temperature of Chemicals 23 °C
Test Duration 24 hours
Chemicals acc.VG 95214-4
      Engine lubrication oil (O-236)
      Aircraft grease (G-354)
      Lubrication oil, synthetic (O-156)
      Hydraulic fluid, petroleum based (H-515)
Customer Chemicals
      Machine-tool oil (QZ-OIL S220)
      Harmonic grease
Tape Specification
Property Units Nominal Value Comments
Operating Voltage V RMS 300
Operating Temperature °C -40°C to 90°C
Jacket Material Compound of ePTFE
Tensile Strength % of original 80 Jacket material aged for 120 hours in full draft
Elongation to Break % of original 85 Circulating-air oven at 121°C
Chemical Tests   23°C 24 ± 0.5h
Designation Nato Code     Nato Code O-236, G-354, O156, H-515, H-544
Tensile Strength Mpa min. 7 Primary insulation is not affected by these oils
Elongation to break % min. 100
Increase of Mass % max. 10

Benefits
  • Simpler cable management system
  • Larger quantity lowers cost
  • Narrowest cable for use in smaller track
Features
  • Flex Life of greater than 20 million cycles2 at 2 in (51 mm) Bend Radius (see info on Flex Life)
  • 50 meter minimum order quantities
  • Hybrid cable configurations
  • Clean room compatible
  • Routable through tight spaces between flex regions
  • Vertical and horizontal rolling flex motion
Specifications
Jacket Printing W. L. Gore & Associates GmbH WO . . . UL AWM-Style 21090 (80°C, voltage not specified)
Maximum Self-Supporting Stroke Length1 20 in (500 mm)
Maximum Acceleration 4 G (39 m/s2)
Temperature -40 to 80°C
Clean Room Class 1
Cable Width 150 mm (5.9 inch) Maximum
Cable Types Available Shielded Signal, Shielded Power, Video, Ethernet, IEEE 1394b, and Fiberoptic
Max No. of Cables Stacked Unlimited
Cable Certifications UL3, RoHS, CSA
1 Base plate required.
2 One cycle is defined by one back and forth motion.
3 UL Style 21090: 80°C, pnuematic tubes are not UL recognized.
NOTICE – USE RESTRICTIONS APPLY. Not for use in food, drug, cosmetic, or medical device manufacturing, processing or packaging operations.
