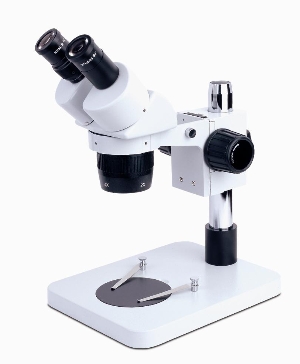

360 Rotatable Gem Stereo Optical Microscope 7x – 45x A23.0906
Description:
–0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece,
–Total Optical Magnification 7~45x
–Pole Stand, No Light Source
–Total Optical Magnification 7~45x
–Pole Stand, No Light Source
Specifications:
|
A23.0906 Zoom Stereo Microscope, 0.7x-4.5x Specification
|
A23.0906-B1
|
A23.0906-T1
|
|
|
Head
|
Brinocular, 45° Inclined, 360° Rotatable,
+/-5° Diopter Adjustable,
Interpupillary Adjustment 54~75mm
|
o
|
|
|
Trinocular, 45° Inclined, 360° Rotatable,
+/-5° Diopter Adjustable,
Interpupillary Adjustment 54~75mm
|
o
|
||
|
Zoom Range
|
0.7~4.5x
|
||
|
Zoom Ratio
|
1:6.5
|
||
|
Eyepiece
|
WF10x/20mm, Both with Eye-cup
|
||
|
Magnification
|
7~45x, Up to 3.5~180x with Auxiliary Lens
|
||
|
Working Distance
|
100mm, With Standard 1x Lens
|
||
|
Field of View
|
1~95.2mm
|
||
|
Stand
|
Pole Stand ST1, With Focusing Knob
|
||
|
Illumination
|
No Light Source
|
||
|
A23.0906 Zoom Stereo Microscope, 0.7x-4.5x Optional Accessories
|
|||
|
Eyepiece
|
WF15x/15mm
|
A51.0922-15
|
|
|
WF20x/10mm
|
A51.0922-20
|
||
|
Auxiliary Lens
|
0.5x
|
A52.0927-05
|
|
|
0.75x
|
A52.0927-75
|
||
|
1.5x
|
A52.0927-15
|
||
|
2.0x
|
A52.0927-20
|
||
