Tungsten probe TP-0005

Liên hệ

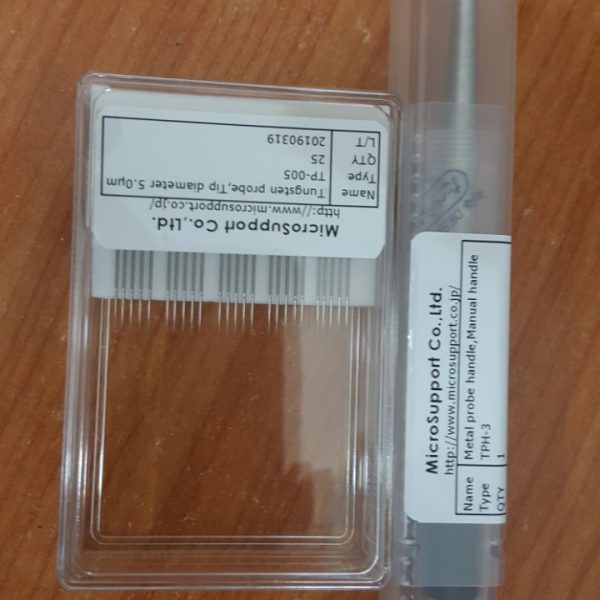

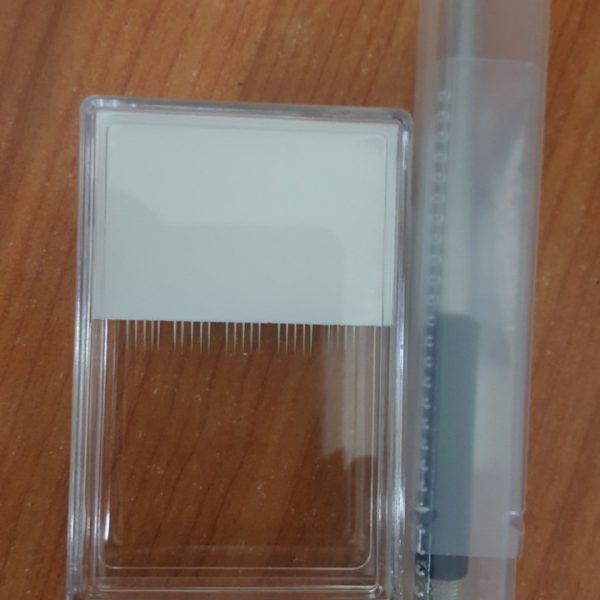

Tungsten probe TP-0005

Nhãn hiệu: Microsuport – Japan

Đường kính: 5μm

Được làm bằng hợp chất Vonfram với độ cứng chỉ sau mỗi Kim cương, độ bền gần như tuyệt đối. Dùng để bóc, tách, di chuyển các vật có kích thước rất nhỏ dưới Kính Hiển Vi, được sử dụng rất nhiều trong các phòng thí nghiệm, hoặc dùng trong sản xuất tấm mạch in điện tử





  • Mô tả

Mô tả

Applications》

●Pick-up buried foreign substance in resin.(5μm)

●Isolation of foreign substance on film (1μm~)

●Shaving foreign substance on glass, and then isolating it. (thickness ~1μm

●Pick-up foreign substance on the surface of the metal. (thickness~1μm)

●Investigation of surface situation to touch them

●Isolating object on the side of a minute level difference. (1~5μm)

●Pick-up tiny object in a tiny hole.(1~5μm)

●Isolating foreign substance on a trap of the filter. (1~5μm)

●Marking a resin or analytical disks like Kbr

●Probing on a minute pad.

TPラインナップ用2

Tungsten Probes (variation)

Tip diameter 0.2μm (10 pcs) TP-0002 Use on 2μm or less foreign substance
Tip diameter 0.5μm (25 pcs) TP-0005 Use on 5μm or less foreign substance
Tip diameter 1μm (25 pcs) TP-001 Use on not less than 5μm foreign substance
Tip diameter 5μm (25 pcs) TP-005 Can use for manual manipulation
Tip diameter 10μm (25 pieces) TP-010 Can use for manual manipulation
Tip diameter 30μm (25 pcs) TP-030 Can use for manual manipulation
0.5,1,10,30μm, each 3pcs TP-SET Tungsten Probes Set

 Metal Probes Handle

For manual manipulation TPH-3
Pin-vice type TPH-10 Use for manipulator

TPHラインナップ用140
