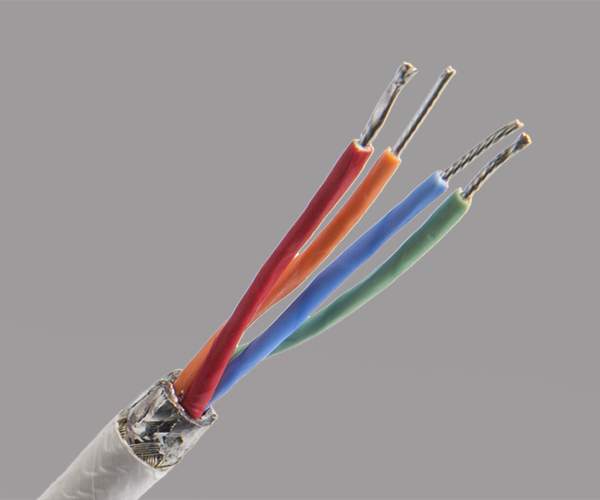

CÁP TÍN HIỆU GORE CABLE (GORE TRACKLESS CABLE)

Hinh ảnh sản phẩm

GORE TRACKLESS CABLE

Mã sản phẩm:
Tiêu chuẩn:
Xuất xứ: GORE-USA
Tình trạng: Mới 100%
Bảo hành: 12 tháng
0 VND Mua Hàng
  • Thông số kỹ thuật
  • Bài Viết
  • Hình Ảnh
  • Video

Applications
  • cable moves in machine visions system (Camera)
  • control network
  • digital video cameras
  • display interconnects
  • external wirings
  • high-speed data links
  • high-speed image scanning/processing
  • laptop screens

Product Specifications for GORE® Trackless Cable

Benefits
  • Eliminate cable track
  • Simpler cable management system
  • Reduced lead times
  • Smaller minimum order quantities
  • Simple configuration/design process
  • Smaller package, better utilization of space
Features
  • Flex Life of greater than 10 million cycles2 at 2 in (51 mm) Bend Radius (see info on Flex Life)
  • Standard options for quick solutions
  • Hybrid cable configurations
  • Cables can be stacked providing a smaller package
  • Pre-installed clamps, ready to be terminated and dropped into your application
  • Clean room compatible
  • Routable through tight spaces between flex regions
  • Vertical and horizontal rolling flex motion
Specifications
Maximum Self-Supporting Stroke Length1 60 in (1500 mm)
Maximum Overall Length of Each Cable 16.4 ft (5.0 m)
Maximum Acceleration 4 G (39 m/s2)
Minimum Bend Radius 2 in (51 mm)
Temperature -40 to 80°C
Clean Room Class 1
Cable Width 1.10 to 2.77 in (27.8 to 70.1 mm)
Cable Types Available Shielded Signal, Shielded Power, Video, Ethernet, IEEE 1394b, and Pneumatic Tubes
Max No. of Cables Stacked 3 (depending on acceleration and stroke length)
Cable Certifications UL3, RoHS, CSA
1 Base plate required.
2 One cycle is defined by one back and forth motion.
3 UL Style 21090:80°C, pnuematic tubes are not UL recognized.

NOTICE – USE RESTRICTIONS APPLY. Not for use in food, drug, cosmetic, or medical device manufacturing, processing or packaging operations.
Features and Benefits:

  • UL Style 21090
  • Flame retardant
  • Low friction surface
  • Used in Class 1 cleanroom applications
  • Low Particulation
  • Color: white
Results Aging Test
Longitudinal Original Tensile Strength (Mpa)
  24,6
AfterThermal Conditioning
  22,1
After Chemical Conditioning Tensile Strength
(% Weight Change)
O-236 22,1 (+7.5)
G-354 24,3 (+13.1)
O-156 24,7 (+4.9)
H-515 17,7 (+8.6)
OZ-OIL S220 30,9 (+4.7)
Harmonic Grease 31,5 (+7.10)
Test Conditions
Thermal Conditioning
Temperature of Air Oven 121°C
Aging Duration 120 hours
Chemical Conditioning
Temperature of Chemicals 23°C
Test Duration 24 hours
Chemicals acc.VG 95214-4
      Engine lubrication oil (O-236)
      Aircraft grease (G-354)
      Lubrication oil, synthetic (O-156)
      Hydraulic fluid, petroleum based (H-515)
Customer Chemicals
      Machine-tool oil (QZ-OIL S220)
      Harmonic grease
Tape Specification
Property Units Nominal Value Comments
Operating Voltage V RMS 300
Operating Temperature °C -40°C to 90°C
Jacket Material Compound of ePTFE
Tensile Strength % of original 80 Jacket material aged for 120h in full draft
Elongation to Break % of original 85 circulating-air oven at 121°C
Chemical Tests   23°C 24 ± 0.5 hours
Designation Nato Code     Nato Code O-236, G-354, O156, H-515, H-544
Tensile Strength Mpa min. 7 Primary insulation is not affected by these oils
Elongation to Break % min. 100
Increase of Mass % max. 10
GORE Trackless High Flex Cables are engineered to perform reliably in a variety of automation applications, including:
